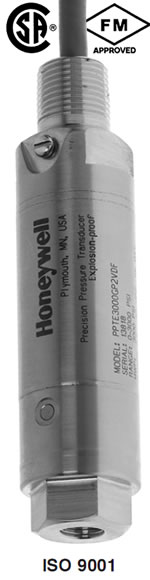

The PPTE offers and explosion-proof pressure transducer where protection in hazardous locations is critical. It combines proven silicon sensor technology with microprocessor-based signal conditioning to provide an extremely smart pressure transducer.

Designed with a hermetically sealed, stainless steel construction, the PPTE operates in severe vibration, thermal and mechanical shock environments. The PPTE has many software features that support a wide range of applications.

Applications
Process Control - Chemical Refineries - Oil and Gas - Paper and Pulp

Class I, Div I, Groups B, C, D
Class II/III, Div I, Groups E, F, G
Temp. T6
Max Ambient = 70^oC
Type 4X

FEATURES and BENEFITS

High Accuracy: ±0.10% FS typical accuracy from -40 to 85^oC

Simplifies System Design: no additional signal compensation needed to gain the benefits of a very accurate sensor

Smart, Digital Sensing & Control

Efficient Data Acquisition: connect up to 89 units on a multidrop bus using built-in RS485 capability

Easily Interfaces: directly to a PC via communication ports

Closes the loop: smart PPT makes control decisions

Versatile and Configurable

Works with existing and new systems: all units have 0-5V analog and either RS 232 or RS 485 digital outputs

Isolation diaphragms handle most media: harsh gases or liquids

Operates in severe vibration, thermal and mechanical shock environments

Optimizes output: user-configurable pressure units, sampling, update rate

Flags problems: internal diagnostics set flags, provide alarms

User-Selectable Software Features

Baud Rate, Parity Setting
Continuous Broadcast
ASCII or Binary Output
Sensor Temperature Output (^oC or ^oF)

Deadband, Sensitivity
Tare Value
Configurable Analog Output
And more...

Precision Pressure Transducer
Explosion-Proof

±0.10% Accuracy
from -40 to 85^oC

Digital and Analog
Hermetically sealed

Resolution
Digital: Up to 0.0011% FS
Analog: 1.22mV steps (12 bits)

Response Delay
(1000/update rate) + 1ms, minimum 17ms

Overpressure
3X FS, maximum 6000 psi

Temp Shock
24 1-hr cycles, -40 to 85^oC

Vibration
0.5in or 20G's, 20Hz - 2K Hz

Accuracy (from -40 to 85^oC)
Digital: ±0.10% FS typ, ±0.20% FS max
Analog: ±0.12% FS typ, ±0.24% FS max
Digital: ±1^oC (at sensing element)
Tighter accuracy available on some models

Weight
22 oz. (624 gm)

Baud Rate
1200, 2400, 4800, 9600, 14400, 19200, 28800

Industrial Emissions and Immunity
Meets IEC 61326

Temperature Range
Operating -40 to 85^oC (-40 to 185^oF)
Storage: -55 to 90^oC (-67 to 194^oF)

Bus Addressing
Addressing up to 89 units

Burst Pressure
3X FS, maximum 8500 psi

Mechanical Shock
1500g, 0.5ms half sine

Sample Rate
8.33ms to 51.2 min (user configurable)

Pressure Units
atm, bar, cmwc, ftwc, hPa, inHg, inwc, kg/cm, KPa, mBar, mmHg, MPa, mwc, psi, user, lcom, pfs

Media Compatibility
Suitable for media compatible with 316 stainless steel

Power Requirements
Supply Voltage: 6.0 to 30 VDC
Operating Current: 19-27mA

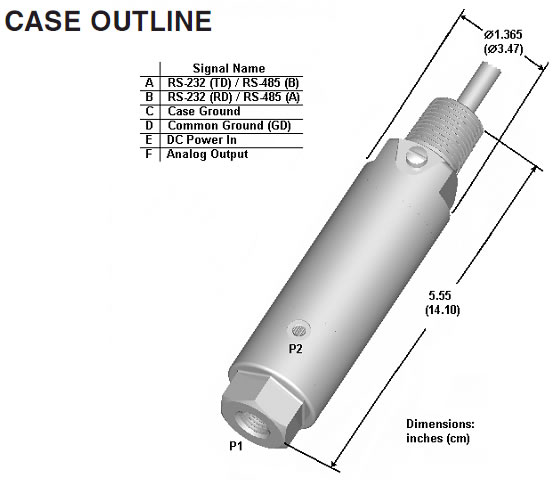

Output
RS-232 Digital w/0-5V Analog
RS-485 Digital w/0-5V Analog
