Wessco now manufactures
Stator RTDs
strator rtds sensors hot spot
Contact Us
for Details!!!

adalet continuous wireless process monitoring systems

Take advantage of the power of wireless data transmission - even in Class I, Division 1 areas! We combined our industry leading enclosures with the most advanced wireless technology available. For applications that require continuous data monitoring and transmission, rely on Adalet Wireless for a complete solution that is easy to integrate and easy on your budget.

APPLICATIONS
  • Tank Levels
  • Petrochemical
  • PLC / RTU extensions
  • Pump Control
  • Waste / Wastewater
  • Oil & Gas
  • Mills / Quarries / Factories
  • Sensor Monitoring
  • Irrigation Systems
  • Vibration
  • Pump Stations
  • Factories
  • Pressure
  • On / Off Valves



Approved for Class I, Division I or Industrial Use

adalet wireless industrial class sensors process monitoring systems
Continuous Wireless
Process Monitoring

A Complete System
A Complete Solution

Battery Powered Available!!!

Also Available in Rugged NEMA 4X, Fiberglass and Stainless Steel Enclosures




FEATURES and BENEFITS
  • Models available for Class I, Division 1 or industrial locations
  • Save Time & Money - take more frequent measurements in less time - all from a safe, central location
  • Sense where problems are just beginning - before they become time consuming and expensive process shutdowns
  • No set up, special software or programming required! Settings can be factory programmed to fit your specific application
  • Using spread spectrum, frequency-hopping technology utilizing a license-free 902-928MHz ISM band, for an interference-free and highly accurate link
  • User or factory programmable data transmit interval from 1 to 60 seconds
  • Accurate measurements up to 3000 feet with no line-of-sight
  • Two ¾" NPT hubs for connection to temperature or pressure sensors
  • Analog 4-20 mA, Thermocouple, RTD, and pressure transducer inputs available (consult manuals)
  • Glass dome for maximum RF signal transmission & visual inspection of status LED's
  • Ruggedized, corrosion resistant cast aluminum alloy housing with color coded powder coating
  • Battery operated - No hard wiring required
  • Thermocouple,RTD,and pressure transducer inputs available
  • Accurate measurements up to 3000 feet with no line-of-sight
  • No software to buy, no set up or programming required
  • Factory programmable data transmit interval and transmit power
  • Utilizes Spread Spectrum, frquency-hopping technology and a license-free 902-928MHz ISM band for accurate and interference-free data transmission
  • Ruggedized, corrosion resistant cast aluminum alloy housing
  • Two 3/4" npt hubs for connection to temperature or pressure sensors
  • Glass dome for maximum RF signal transmission
Battery Powered -
Going Where Cable & Conduit Can't!
The battery powered system from ADALET WIreless can be installed virtually anywhere allowing you to implement wireless sensor and process control monitoring solutions never before thought possible. Approved for installation in Class I, Division 1 areas. This complete system allows for monitoring in locations where running conduit or cable is impossible due to cost,location or safety considerations. Take accurate and more frequent measurements, even in the most hazardous environments, from a safe, central location.
adalet tank levels petrochemical pump stations thermocouple rtds
AREAS of USE

XDANT - Explosionproof Version
Division 1 Classified Areas - U.S., Canada
  - Class I, Division 1, Groups B, C, D
  - Class II, Groups E, F, G
  - Class III

N4DANT - NEMA 4X Version
Industrial and general purpose areas

APPLICABLE DESIGN STANDARDS

XDANT - Explosionproof Version
UL Standard 1203
CSA Standard C22.2 No. 30
NEMA 4X, 7BCD, 9EFG
Canada: CSA-E79-0 & CSA-E79-1
U.S.: ANSI/UL60079-0, ANSI/UL60079-1

N4DANT - NEMA 4X Version
UL Standard 50
CSA Standard C22.2 No. 94
NEMA 4X

Frequency
902 - 928 MHz (transmitter AWT and receiver AWR)

Transmit Power
1 Watt (transmitter AWT)

Power Source
Transmitter AWT (AC model): 85 to 265 VAC
Transmitter AWT (DC model): 12 to 32 VDC
Receiver AWR: 12 to 32 VDC

Operating Temperature
Transmitter AWT (AC model): -25oC to +70oC
Transmitter AWT (DC model): -40oC to +85oC
Receiver AWR (AC model): -25oC to +70oC
Receiver AWR (DC model): -40oC to +85oC

Outputs (Receiver)
RS 232
Analog 4-20 mA or 0-5V
One discreet opto-isolated output
Relays: Form C
Open input circuit
User specified

Accuracy
.2% of full scale (input sensor not incl.) (receiver AWR)

Power Consumption
Transmit Mode: 4W @ 1W transmit power
Transmit Mode: 1.65W @ 100mW transmit power
Receiver AWR: 1.12W

Dimensions

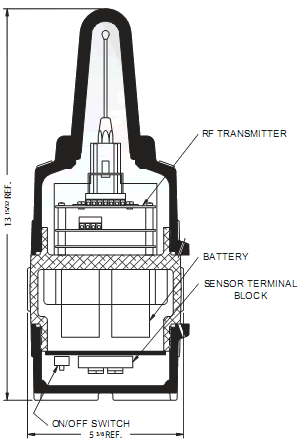

Transmitter AWT: 13.5" H x 4" W dia.
Receiver AWR: 1-¾"H x 3"W x 4-¼"D

Inputs (Transmitter)
Analog 4-20 mA
Thermocouple: Type J, K, T, E, N
RTD: 100Ω - 2, 3, or 4 wire
Pressure: 0-15,000 PSI maximum
Range specified by customer
One discreet opto-isolated input



Click here for full detailed product spec sheet
