csi 9420 wireless vibration transmitter

CSI 9420 Enables Wireless Vibration Monitoring of Any Mechanical Asset over a self-organizing wireless network for use by operations and maintenance personnel.

Machine Applications
  • Motors
  • Fans
  • Horizontal Pumps
  • Vertical Pumps
  • Cooling Tower Fans
  • Compressors
  • Gearboxes


Detect Typical Machine Problems
  • Imbalance, misalignment, looseness
  • Rolling element bearing defects
  • Gear defects
  • Pump cavitation


Monitoring Benefits
  • Advance indication of developing problems
  • Keep people out of hazardous areas
  • Protect health, safety, and environment
  • Monitor inaccessible equipment
  • Complement portable monitoring programs

csi 9420 wireless vibration transmitters
FM, CSA, ATEX
AMS Suite: Intelligent Device Manager


Device Specifications
  • Approvals: FM, CSA, ATEX
  • Inputs: 2 single low power accelerometers or one low power accelerometer with embedded temperature
  • Outputs: Overall Velocity and PeakVue® per sensor
  • Power Module Life (with two sensors): 30 minute burst rate – 3 years/60 minute burst rate – 6 years
  • Available in aluminum housing

Overview
The rugged CSI 9420 Wireless Vibration Transmitter connects quickly, easily, and economically to any machine. It delivers vibration information over a highly-reliable, self-organizing wireless network for use by operations and maintenance personnel. configuration, diagnostics, and alerts are imported into AMS Suite: Intelligent Device Manager. Vibration data can also be delivered to AMS Machinery Manager, data historians, or any control system for trending analysis with other process parameters. In addition to measuring overall vibration and temperature, the CSI 9420 Wireless Vibration Transmitter includes PeakVue technology for advanced bearing and gear diagnostics.

FEATURES
  • Accurate vibration monitoring in hard-to-reach locations
  • Provides overall velocity and Peakvue measurements for one or two accelerometers
  • Delivers vibration and temperature measurements through a single accelerometer with embedded temperature sensor
  • Wireless output with >99% data reliability delivers rich WirelessHART data, protected by best-in-class security
  • Trend wireless vibration values in AMS Suite: Machinery Health Manager via Modbus client
  • Wall or Pipe Mounting
  • 3 Year Warranty

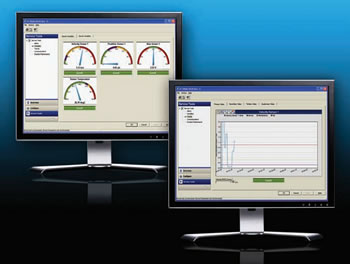

ams device manager eddl status rosemount transmitters

High Accuracy and Reliability

The CSI 9420 is ideal for vibration monitoring applications, especially in hard-to-reach or cost-prohibitive locations. It provides advanced accuracy for all installations and ensures precise transmitter performance in harsh and/or noisy EMI / RFI environments. The CSI 9420 can be configured for a variety of low-power accelerometer sensor input options, including one accelerometer, one accelerometer with embedded temperature, or two accelerometers.

Configure and Diagnose with AMS Suite

Access all the predictive diagnostics in the CSI 9420 with AMS Device Manager. Use AMS Device Manager to configure, calibrate, diagnose, and document device activities.

AMS Device Manager ensures a superior experience through EDDL capabilities that provide a consistent user interface between manufacturers and a graphical presentation of diagnostics. The enhanced graphical interface provides clear indications of device status and process variables, extending the benefits of PlantWeb to WirelesHART devices.


Digital Field Devices Power PlantWeb
The CSI 9420 powers PlantWeb by communicating important vibration diagnostics and PlantWeb alerts to improve availability while reducing installation, operations, and maintenance costs.

SmartPower
SmartPower is incorporated to extend battery life while still delivering highly-reliable measurements with rich WirelessHART data and diagnostic information.

Rosemount 648, 702, and 3051S Wireless Devices
These transmitters enable fully-integrated temperature, pressure, flow, discrete, and level measurement wireless solutions that can be combined with the CSI 9420 vibration measurements to optimize plant performance and reduce risk.

Visible LCD Display
The LCD meter conveniently displays sensor values and transmitter diagnostics. Local indication of vibration measurements and diagnostics provides real-time, acurate verification of process conditions. The LCD meter is easily visible, even in remote mount installations. Remote mount allows the CSI 9420 to be installed with sensors mounted directly on the asset.

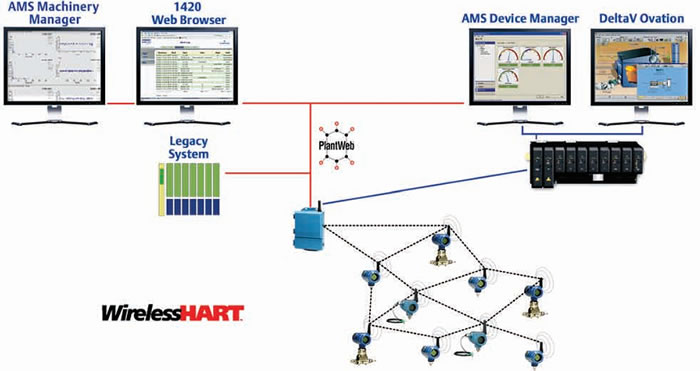

wireless hart emerson smart wireless self organizing network

At the heart of this Smart Wireless approach is the self-organizing network, featuring security, infinite configurability,
and data reliability greater than 99%, to ensure an adaptive and flexible approach to wireless.

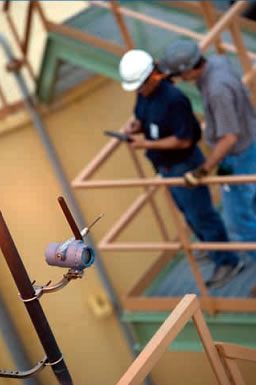

ams machinery manager vibration data modbus client
CSI 9420 is an easy addition to your existing network of wireless pressure & temperature transmitters.

Wireless Architecture Overivew

Best-in-Class Security Keeps Your Network Safe
Security is most effective if it can fend off attacks on multiple fronts. Emerson's multi-layered approach to wireless network security ensures that your network stays protected. The network devices implement encryption, authentication, verification, anti-jamming and key management methods to make sure that data transmissions are received only by your wireless gateway.

Analyze Data in AMS Machinery Manager
Vibration data transmitted from wireless field devices is available for analysis and storage in AMS Machinery Manager via the Modbus client capability. AMSY Machinery Manager combines predictive maintenance techniques with comprehensive analysis tools for an accurate assessment of the machinery health in your facility.

Configuration is made easy by using the Modbus TCP/IP capability of the 1420 Smart Wireless Gateway and AMS Machinery Manager's Modbus mapping utility.

Maximize Data Reliability
The 1420 Smart Wireless Gateway enables the most robust security available. It provides easy host integration with no additional software and continuously optimizes network performance to maximize data reliability and battery life of the wireless devices.

Network Stability
Smart Wireless delivers greater than 99% data reliability. This is primarily enabled by the self-organizing nature of the technology platform. If a temporary obstruction blocks a direct connection, the network automatically reroutes the signal to an adjacent device, ensuring network reliability and data integrity.

Easy Installation
The CSI 9420 is easy to install and provides reliable measurement while delivering diagnostics data within hours of installation.

Integrates with existing HART Devices
The CSI 9420 uses the same tools and software as other HART devices. This allows you to leverage existing practices, training, and maintenance procedures without the added wiring costs. These intelligent devices provide exceptional data reliability.

Seamless Integration to Host Systems
Send measurement data and diagnostics from your wireless devices to any type of information system, including Serial Modbus, Modbus TCP, OPC, legacy systems and data historians.



Measurement Precision
Vibration: ± 0.2 dB over 24 months
Temperature: ± 0.2oC over 24 months

Humidity Limits
0-100% relative humidity

Terminal Block & Battery Pack
PBT

Materials of Construction (enclosure)
Housing - Low-copper aluminum
Paint - Polyurethane
Cover O-ring - Buna-N

Weight
CSI 9420 without LCD - 4.6 lbs. (2 kg)
CSI 9420 with LCD - 4.7 lbs. (2.1 kg)

Transmit Rate
User selectable, 1 min to 60 min

Antenna
PBT/PC integrated omni directional antenna

Vibration Effect
No loss in functionality when tested per the requirements
of IEC60770-1 with high vibration level (10 Hz to 10 Khz)
and up to 50g acceleration

Output
HART enabled, wireless, linear with velocity, temperature, and/or PeakVue
The overall velocity measurement delivered over the 2Hz-1000Hz frequency range per the ISO 10816 standard
The PeakVue value delivered as peak-to-peak acceleration value based on a 1000Hz high-pass filter

Local Display
The optional 5-digit integral LCD Meter can display engineering units (oF, oC, In/Sec, mm/sec and g's).
Display updates at transmit rate up to once per minute

A0394 Sensor Series
Nominal Sensitivity 25 mV/g (2.5mV/m/s2)
Frequency Range 96 to 600k cpm (1.6 to 10k Hz)
Amplitude Range ± 80 g (± 784 m/s2)
Broadband Resolution 3mg rms (29 mm/s2 rms)

Mounting
Transmitters may be attached away from the asset to be monitored with the sensors mounted directly to the asset
Mounting brackets also permit remote mounting

Enclosure Ratings (9420)
Housing option code D is NEMA 4X, and IP66



GENERAL CERTIFICATIONS
  • Telecommunication Compliance
    • 2.4 Ghz WirelessHART: 900 Mhz
    • FCC ID: LW2RM2510    FCC ID: SJC-M1030
    • IC ID: 2731A-RM2510    IC ID: 5853A-M1030
  • ATEX DIrective (94/9/EC)
    • This complies with the ATEX Directive
    • Compliant to Electro Magnetic Compatibility (EMC) (2004/108/EC)
    • All models conforming to the following standards: EN 61326-1, 61326-2-3: 2006
  • Radio and Telecommunications Terminal Equipment Directive (R&TTE)(1999/5/EC)
  • Canadian Standards Association (CSA)
  • Hazardous Locations Certifications:
  • Factory Mutual (FM) Approvals
    • 2.4 GHz WirelessHart             900 MHz
    • Certificate Number: 3032128    Certificate Number: 3032128
    • FM Non-incendive
    • Zone Marking: Class I, Zone 2, Group IIC
    • Temperature Code T4 (-40oC < Ta < 85oC), (-20oC < Ta < 80oC with LCD)
    • Non-incendive for Class I, Division 2, Groups A, B, C, and D
    • For use with Rosemount Power Module 753-9220-xxxx (MHM 89002) only
    • Enclosure Type 4X / IP66
    • Conforming to the following standards:
      FM 3600: Nov 1988, FM 3600: Nov 1998, FM 3611: Dec 2004, FM 3810: Jan 2005
    • Canadian Standards Association (CSA)
    • ATEX, Zone 2 - 2.4 GHz WirelessHART
      • Certificate Number: Baseefa09ATEX0060X
      • Ex II 3G Ex ic IIC T4 (-40oC < 85oC without LCD), (-20oC < Ta < 80oC with LCD)
      • Enclosure Type IP66
      • For use with Rosemount Power Module 753-9220-xxxx (MHM 89002) only
      • Conforming to the following requirements: EN 60079-0, EN60079-11:200


Click here for full detailed product spec sheet
