A Wireless Solution for High Density Temperature Measurement Applications
Many users across the process industry need to monitor hundreds to thousands of temperature measurements in a plant to ensure efficient operations. The 848T Wireless monitors up to four independently configurable RTD, thermocouple, ohm, millivolt and 4 – 20 mA inputs allowing users access to more temperature measurements without any signal wire. Increased visibility to plant operations allows for proactive maintenance and monitoring of key assets such as motor bearings that drive pumps, fans and compressors, as well as heat exchangers, tanks, reactors and boilers.
Fully compatible with any WirelessHART™ network, the Rosemount 848T Wireless provides the same rich diagnostic data and reliable performance as other devices in the Smart Wireless family. It monitors many temperature measurements with one device ensuring accurate and stable measurements and continuously monitors measurement integrity. The device is self-powered and utilizes SmartPower™ to provide an intrinsically safe power module with long battery life.
- Innovative temperature measurement for high density applications that provide installation and operational savings
- Independently configuratble inputs that support RTD, thermocouple, ohm, mV, and 4-20 mA signals
- Enclosure options and intrinsically safe design allows for installation close to any process, including hazrdous areas
- Interfaces with any host using a 3420 Fieldbus Interface Module or Smart Wireless Gateway
- WirelessHART capabilities extends the full benefits of PlantWeb to previously inaccessible locations
|
|
Supports PlantWeb
|
FEATURES & BENEFITS |
- Four independently configurable RTD, thermocouple, ohm, millivolt and 4 - 20 mA signals
- Lowers installed cost by eliminating long wire runs to the control room
- Dependable performance by enhancing measurement reliability for trustworthy data
- Mount close to process to keep sensor wiring short to minimize effect of electromagnetic interference(EMI)
- Transmitters compensate and filter noise and EMI for stable measurement performance
- Simplified installation and configuration practices for faster start-ups
- Reduction of required loop drawings, eliminates cable trays and large wiring cabinets
- Enhanced user interface makes configuration intuitive for faster configuration and commissioning
- Fully compatible with WirelessHART networks with greater than 99% data reliability
- Eight user configurable alerts for advanced measurement monitoring
- Temperature sensor diagnostics for continuous monitoring of sensor integrity
- Type 4x, IP66 housings allows for installation in harsh process environments
- Best ambient temperature compensation reduces measurement error in harsh applications, especially for wide fluctuations of ambient temperature
|
| |
 |

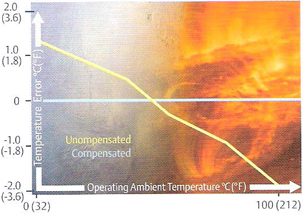

Ambient Temperature Compensation
Ambient temperature fluctuations are commonly encountered in industrial process environments. Individually characterized transmitters compensate for these fluctuations resulting in improved measurement accuracy and stability. This reduction in variability allows the process to be operated closer to the set point, resulting in greater throughput. |
| APPLICATIONS |
 |
Tank Monitoring
Profiles for accurate determination of density, volume and mass
Reactor Temperature Profile
Identify hotspots & channeling to improve efficiency and prevent catalyst damage
Distillation Column Temperature Profile
Optimize separation and product quality |
 |
Boiler tube surface temperature for
fatique movement management analysis
Minimize boiler shutdown due to tube ruptures
Reduce boiler operating and maintenance costs
Profile furnace temperature to improve energy usage
Reduce operating costs |
 |
Monitor motor for pumps, fans, dryers, or compressors
Bearing temperature is indicator of potential failure
Keep motors operating within specifications to extend life
Minimize maintenance costs and downtime preventing unexpected failures |
 |
Monitor Asset Performance
Measure inlet and outlet temperature
Calculate heat exchanger efficiency and adjust to improve energy usage
Minimize maintenance costs and optimize cleaning schedule to prevent fouling |
| |
|
|
|
|
|
