Application

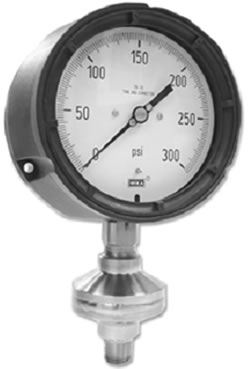

Process industry diaphragm gauge for use in corrosive contaminated or viscous media. Unit does not allow any excess to the system fill, gauge is permanently welded to the seal body.
Design
Process industry gauge with integrated diaphragm seal, requires hydraulic fluid to transmit pressure to instrument. |
|
Process Connection
¼" and ½" NPT
Gauge Size
4-½" Process gauge
Accuracy
±0.5% of span
Window
Acrylic |
Suitable Pressure Ranges
Max 5000 PSI
Dial
White aluminum with black lettering
Case Material
Fiberglass reinforced thermoplastic, black & ring
Pointer
Black aluminum, adjustable
|
Options
Acrylic, Instrument glass, Laminated safety glass
¼" or ½" male
¼" or ½" female
Stainless steel 316L (1.4435), Hastelloy C276 (2.4819), or Monel 400 (2.4360)
KN 2 Silicon oil, KN 21 Halocarbon, KN 32 DC 704, or KN 68 DC 200 (10 cST)
1 x 1/8" or 1 x ¼" NPT
2x 1/8" or 2 x ¼" NPT
Stainless steel tag or Clean for oxygen service ASME B40.1 level IV
Certificate of compliance, Certification to EN 10 204 3.1B (material certificates), or NIST certificate of calibration
|
|
|
