Industrial type suitable for corrosive environments where the fluid medium does not clog connection or corrode stainless steel. Built to withstand corrosive, highly viscous and crystallizing medium. diaphragm mechanically linked to movement, allowing use of a metallic diaphragm at low pressures. Eliminates system liquid filling and permits overpressurization up to five times the full scale range.
Housing bolts limit maximum pressures to 600 PSI.

Stainless Steel Case
Stainless Steel Wetted Parts

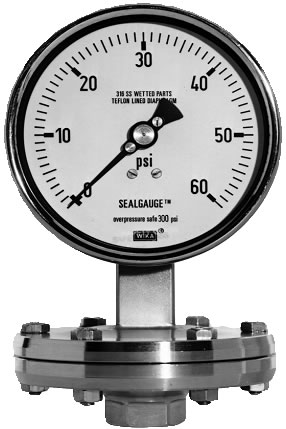

Industry Series - Type 43X.50

Sizes
4" and 6" (100 and 160mm)

Movement
Material: stainless steel

Window Gasket
Buna-N

Accuracy
±1.5% of span

Operating Temperature
Ambient: -4^oF to 140^oF
Media: max. 212^oF (+100^oC)

Connection
Material: 316 stainless steel
Lower mount (LM
½" NPT Female

Diaphragm Gasket
Viton

Pointer
Adjustable black aluminum
Black aluminum, non-adjustable

Work Range
Steady: Full scale value
Fluctuating: 0.9 x full scale value

Overpressure Safety
5 X full scale value, max. 600 PSI

Dial
White aluminum with black lettering

Window
Laminated safety glass

Standard Scales
PSI or inches of H2O

Work Range
Steady: Full scale value
Fluctuating: 0.9 x full scale value

Diaphragm Housing
Upper: 316 stainless steel
Lower: 316 stainless steel

Diaphragm Element
316 stainless steel with PTFE lining
Duratherm (NiCoCt-Alloy) with PTFE lining

Ranges
Vacuum / Compound to 30" HG / 0 / 200 PSI
Pressure from 10" H2O to 100" H2) (6" flange diameter)
Pressure from 6 PSI to 600 PSI (4" flange diameter)
or other equivalent units of pressure or vacuum

Weather Protection
Weather resistant (NEMA 3 / IP 54) - dry case
Weather tight (NEMA 4X / IP 65) - liquid-filled case

Case
304 stainless steel with blow-out disk and stainless steel bayonet ring

Options (minimum order quantity may be required)
316 stainless steel case
10 X overpressure safety, max. 600 PSI
Underpressure safe to -30 " Hg
Glycerine, silicone & flourolube case filling (Type 433.50)
Special connections limited to wrench flat area
Open flange connections (300# ANSI maximum)
Instrument glass window
Acrylic plastic window
PTFE wetted parts (Type 45X.50)
Cleaned for oxygen service
Extended media temperature up to 392^oF
DIN standards
Custom dial layouts
Other pressure scales available
Alarm contact switches magnetic and inductive
Transmitters
Diaphragm, wetted parts lined for open flange connections such as:
PFA or ECTFE powder coating, Hastelloy B2 & C4, Monel, Tantalum or Titanium
Only male threaded connections are available with special materials
