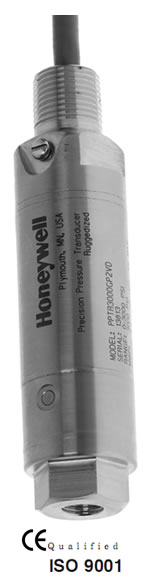

pptr ruggedized pressure transducers honeywell sensors

The PPTR offers a rugged, smart precision pressure transducer for use in harsh environments. It combines proven silicon sensor technology with microprocessor-based signal conditioning to provide and extremely smart pressure transducer.

Designed with a hermetically sealed, stainless steel construction, the PPTR operates in severe vibration, thermal and mechanical shock environments. The PPTR has many software features that support a wide range of applications.

Applications

Process Control

Engine Test Stands

Flight Tests

Manufacturing Test Stations

Laboratory Instruments

Medical Instruments

Water Depth

Instrumentation Equipment

Analytical Equipment


FEATURES and BENEFITS
High Accuracy: ±0.10% FS typical accuracy from -40 to 85oC
Simplifies System Design: no additional signal compensation needed to gain the benefits of a very accurate sensor
Smart, Digital Sensing & Control
Efficient Data Acquisition: connect up to 89 units on a multidrop bus using built-in RS485 capability
Easily Interfaces: directly to a PC via communication ports
Closes the loop: smart PPT makes control decisions
Versatile and Configurable
Works with existing and new systems: all units have 0-5V analog and either RS 232 or RS 485 digital outputs
Isolation diaphragms handle most media: harsh gases or liquids
Operates in severe vibration, thermal and mechanical shock environments
Optimizes output: user-configurable pressure units, sampling, update rate
Flags problems: internal diagnostics set flags, provide alarms
User-Selectable Software Features
Baud Rate, Parity Setting
Continuous Broadcast
ASCII or Binary Output
Sensor Temperature Output (oC or oF)
Deadband, Sensitivity
Tare Value
Configurable Analog Output
And more...


pptr ruggedized pressure transducers honeywell sensors
Precision Pressure
Ruggedized Transducer

Resolution
Digital: Up to 0.0011% FS
Analog: 1.22mV steps (12 bits)

Response Delay
(1000/update rate) + 1ms, minimum 17ms

Overpressure
3X FS, maximum 6000 psi

Temp Shock
24 1-hr cycles, -40 to 85oC

Vibration
0.5in or 20G's, 20Hz - 2K Hz

Accuracy (from -40 to 85oC)
Digital: ±0.10% FS typ, ±0.20% FS max
Analog: ±0.12% FS typ, ±0.24% FS max
Digital: ±1oC (at sensing element)
Tighter accuracy available on some models

Weight
14 oz (397 gm) 6-pin connector
22 oz (624 gm) NPT w/pigtail style

Baud Rate
1200, 2400, 4800, 9600, 14400, 19200, 28800

Temperature Range
Operating -40 to 85oC (-40 to 185oF)
Storage: -55 to 90oC (-67 to 194oF)

Bus Addressing
Addressing up to 89 units

Burst Pressure
3X FS, maximum 8500 psi

Mechanical Shock
1500g, 0.5ms half sine

Sample Rate
8.33ms to 51.2 min (user configurable)

Pressure Units
atm, bar, cmwc, ftwc, hPa, inHg, inwc, kg/cm, KPa, mBar, mmHg, MPa, mwc, psi, user, lcom, pfs

Media Compatibility
Suitable for media compatible with 316 stainless steel

Power Requirements
Supply Voltage: 6.0 to 30 VDC
Operating Current: 19-27mA

Output
RS-232 Digital w/0-5V Analog
RS-485 Digital w/0-5V Analog

Click here for full detailed product spec sheet

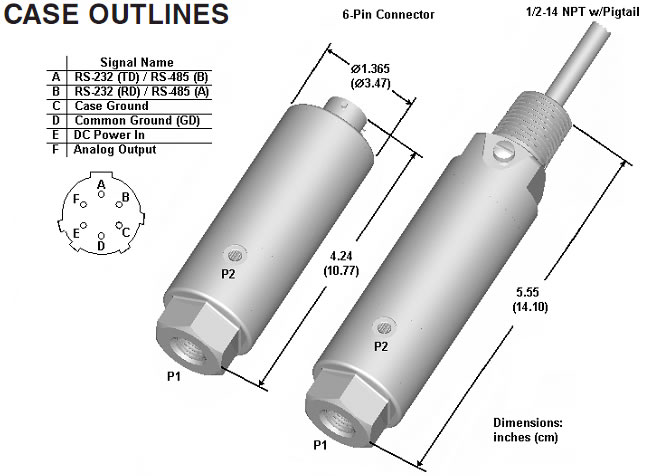

pptr ntp pigtail pressure sensor transducer engine test flight tests manufacturing laboratory medical instrumentation

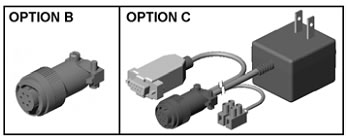

pptr pressure sensor mating connector 6-pin power supply data cable rs-232
