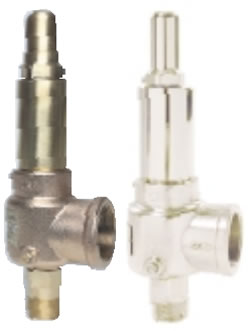

conbraco 500 safety relief valves asme gas liquid

ASME Section VIII "UV" Stream, Air / Gas and Liquid Service

National Board Certified Flow Capacities
Bronze, Carbon Steel or All - Stainless Steel Materials of Construction
Sizes 1/2" through 2", Pressure Settings to 900 PSIG @ 800oF
CSA B51 CRN OG2663.1C


Features and Benefits
  • Wide range of materials and options
  • One trim design is suitable for steam, air / gas and liquid service
  • High capacity full nozzle design
  • Stainless steel springs
  • Integral lift stop
  • Self-aligning pivoting disc
  • API 527 seat tightness
  • Tuned blowdown - short and adjustable
  • Backpressure tight design minimizes fugitive emissions

Applications
  • Pressure vessels and pressure piping systems
  • Pumps, tanks and hydraulic systems
  • Thermal relief of liquid filled vessels
  • Chemical and other process plants
  • Power plant auxiliary systems
  • Cryogenic and industrial gases
  • Air compressors and dryers
  • Pressure reducing stations
  • Vacuum relief

Options
  • Screwed cap (standard), packed lift lever
  • Test gags
  • Elastomer or Teflon soft seat for exceptional seat tightness
  • High temperature alloy springs for 550 - 800oF service
  • Special cleaning available
  • Cryogenic preparation (please request)

conbraco 500 safety relief valves asme gas liquid
Valve Sizing and Selection

The charts on the full data sheet (link below) contain the National Board certified flow ratings for air, steam, and water at standard conditions as specified in ASME Section VIII, Div. 1 UG-129 and UG-131. Common correction factors are provided to calculate the effects of minor variations from these standard conditions.

Knowing the set pressure, required relieving capacity, service fluid and conditions, use these charts to determine the orifice letter corresponding to the flow area required to meet or exceed the flow requirements. then refer to the Model Numbering and Dimension charts to select the connections and materials best suited to the application.

For further information regarding the sizing and selection of pressure relief valves, or to calculate the flow of other types of fluids or at other conditions, please refer to ASME Section VIII, Div. 1 Part UG including Appendix 11, and ANS I/ API RP 520 Part I.


Click here for full detailed product spec sheet
