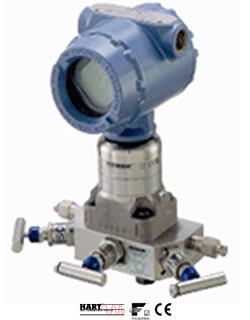

Setting the Standard for Pressure Measurement
Industry's best total performance, a flexible Coplanar platform, and guaranteed 5-year stability, has made the 3051 the standard in pressure management.

Industry's best total performance of ±0.15%
Total performance is the true measure of real-world transmitter performance. Using superior sensor technology and engineered for optimal performance, the 3051 delivers unprecedented ±0.04% reference accuracy, resulting in total operating performance of ±0.15%. Superior total performance equates to reduced variability and improved plant safety.

Five year installed stability of ±0.125%
Transmitter stability is a critical measure of transmitter performance over time. Through aggresive simulation testing beyond standard IEC 770 testing, the 3051 has proven its ability to maintain performance over a five year period under the most demanding process conditions. Superior transmitter stability reduces calibration frequency to save operation and maintenance costs.

Unmatched dynamic performance
In dynamic applications, speed of measurement is as important as repeatability. The 3051 repsponds up to eight times faster than the typical pressure transmitter to detect and control variations quickly and efficiently. Superior dynamic response yields more accurate measurements to reduce variability and increase profitability.

Coplanar platform enables complete point solutions
The versatile Coplanar platform design enables the best process connection for pressure, flow and level applications. Right out of the box, the solution arrives factory calibrated, pressure-tested, and ready to install. Only the 3051 has a flexible design to reduce engineering and inventory costs.

Advanced PlantWeb Functionality
Optional functionality includes perforamnce diagnostics and Control Anywhere. Performance diagnostics - such as plugged impulse line detection and statistical process monitoring - go beyond the transmitter to evaluate the performance of the entire measurement system. Control Anywhere provides user-configurable transmitter-resident function blocks, such as PID, Math, and signal characterization.

Pressure Solutions

3051S Series of Instrumentation
Scalable pressure, flow and level measurement solutions improve installation and maintenance practices.

Mass Flow Transmitter
Accurately measures differential pressure, static pressure and process temperature to dynamically calculate fully compensated mass flow

Integral Manifolds
Factory-assembled, calibrated and seal-tested manifolds reduce on-site installation costs.

Diaphragm Seals
Provide reliable, remote measurements of process pressure and protects the transmitter from hot, corrosive, or viscous fluids.

Orifice Plate Primary Element Systems: Orifice Plates, Flange Unions, and Meter Sections
A comprehensive offering of orifice plates, flange unions and meter sections that is easy to specify and order. The Conditioning Orifice provides superior performance in tight fit applications.

Annubar Flowmeter Series
The state-of-the-art, fifth generation Annubar combined with a MultiVariable transmitter creates an accurate, repeatable and dependable insertion-type flowmeter.

Compact Orifice Flowmeter Series
Compact Orifice Flowmeters can be installed between existing flanges, up to a Class 600 (PN100) rating. In tight fit applications, a conditioning orifice plate version is available, requiring only two diameters of straight run upstream.

ProPlate Flowmeter Series
These integral orifice flowmeters eliminate the inaccuracies that become more pronounced in small orifice line installation. The completely assembled, ready to install flowmeters reduce cost and simplify installation.

Click here for full detailed product spec sheet
