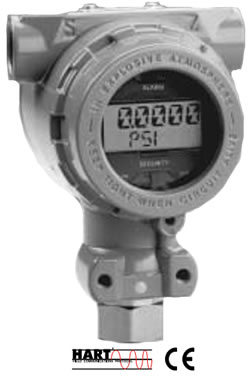

The 2088 Smart Pressure Transmitter is an economical addition to the pressure transmitter line of instruments. The 2088 is designed with reliability, long-term performance, and maintainability in mind. The 2088 maintains a specification conformance of at least 3δ. The rugged, reliable performance for which Emerson Process Management transmitters are famous, coupled with Smart capabilities, make these transmitters exceptional values.
The 2088 is available in either gauge or absolute pressure in pressure ranges to 4,000 psi (275 bar). It utilizes a solid-state, polysilicon pressure sensor with a choice of either 316L or Hastelloy isolating diaphragms. The low oil fill of this design has very little temperature effect and outstanding accuracy.
Features
The 2088 provides accurate, stable, and reliable pressure measurement in difficult applications. Its small compact design allows it to be directly connected to a process - providing a quick, easy, and cost effective installation.
The 2088 standard process connection is ½ inch NPT but a variety of optional connections are available. Optional connections range from multiple threaded connections to our full line of manifolds and remote diaphragm seals that provide solutions for virtually any connection.
The 2088 also features a fully configurable LCD that displays pressure and diagnostic information. The information displayed is directly from the microprocessor which accounts for its accuracy and reliability. |

Absolute and Gage
Pressure Transmitter
Zero-based Spans
Reference Conditions
Silicone Oil Fill
316L SST Isolating Diaphragm
|
Service
Liquid, gas, and vapor applications
Output
Code S: 4-20 mA dc
Code N: 1-5 volt dc, low power
(Outputs are directly proportional to the input pressure)
Humidity Limits
0-100% relative humidity
Turn-on Time
2.0 seconds, no warm-up required
IEEE 587 Category B
6 kV Crest (1.2 x 50 µs)
3 kV Crest (8 x 20 µs)
6 kV Crest (0.5 µs by 100 kHz)
Process Connection
½-14 NPT female
DIN 16288 G ½ male
RC ½ female (PT ½ female)
or M20 x 1.5 (CM20) male
Isolating Diaphragm
316L stainless steel or Hastelloy C-276
Process Connector
316L stainless steel CF-3M (Cast version of 316L SST,
material per ASTM_A743) or Hastelloy C-276
Paint
Polyurethane
Weight
Output Code S and N: Approximately 2.44 lb (1.11 kg)
Power Supply Effect
Less than 0.01% of calibrated span per volt |
Range
20 to 1
Time Response
Time Constant: 200 milliseconds
Dead time: < 0.1 s
Update rate: 20 times per second minimum
Volumetric Displacement
Less than 0.00042 cm
Current Draw
Output Code N: < or = to 3 mA without LCD display
IEEE 472
SWC 2.5 kV Crest, 1 HMz waveform
Tested to IEC 801-3
Electrical Connection
½-14 NPT
M20 x 1.5 (CM20)
PG 13.5
or
G ½ female (PF ½ female) conduit entry
Stability
±0.10% of URL for 12 months
Electronics Housing
Low-copper aluminum, NEMA 4X, IP65, IP67,
CSA enclosure Type 4X
Cover O-rings
Buna-N
Fill Fluid
Silicone or inert fill
|
Overpressure Limits
Range 1: 120 psig max
All other ranges: two times the URL
Zero Elevation and Suppression
Zero can be suppressed between atmosphere for gage transmimtters or 0 psia for absolute transmitters and upper range limit, provided the calibrated span is equal to or greater than the minimum span, and the upper range value does not exceed the upper range limit. For vacuum calibrations, the compound range option is available (Option Code CR)
Compound Range Capability
Select the Compound Range (CR) option for use in negative gage pressure applications. An enhanced sensor is installed in transmitters with the CR option code.
Transmitter Security
Activating the transmitter security function prevents changes tot he transmitter configuration, including local zero and span adjustments. Security is activated by an internal switch.
Failure Mode
If self-diagnostics detect a sensor or microprocessor failure, the analog signal is driven either high or low to alert the user. High or low failure mode is user-selectable with a jumper on the transmitter. The values to which the transmitter drives its output in failure mode depend on whether it is factory-configured to standard or NAMUR-compliant operation. The values for each may be seen in the detailed product documentation.
Mounting Position Effect
Zero shift of up to 1.2 in H2) (0.30 kPa), which can be calibrated out. No span effect
RFI Effect
Less than ±0.25% of upper range limit from 20-1000 MHz at 30 V/m with leads in conduit. Less than ±0.25% of upper range limit from 20-1000 MHz at 10 V/m with unshielded twisted pair (no conduit)
Tagging
The transmitter is tagged, at no charge, in accordance with customer requirements. All tags are stainless steel. The standard tag is permanently attached to the transmitter. Tag character height is 1/8" (0.318 cm). A wired tag is available upon request.
Accessory Block and Bleed Valve (S5 Option)
The Rosemount 306 Integral Manifold is pre-assembled to transmitter and leak checked.
European Union Directive Information
ATEX DIrective (94/9/EC)
Emerson Process Management complies with the ATEX Directive
European Pressure Equipment Directive (PED) (97/23/EC)
2088/2090 Pressure Transmitters - Sound Engineering Practice
Electro Magenetic Compatibility (EMC) (89/336/EEC)
All 2088/2090 Smart Pressure Transmitters - EN 50081-1: 1992; EN 50082-2: 1995; EN 61326-1: 1997
Ordinary Location Certification for Factory Mutual
As standard, the transmitter has been examined and tested to determine that the design meets basic electrical, mechanical, and fire protection requirements by FM, a nationally recognized testing laboratory (NRTL) as accredited by the Federal Occupational Safety and Health Administration (OSHA).
Hazardous Locations Certificates
North American Certifications - Factory Mutual (FM) Approvals
E5
Explosion-Proof for Class I, Division 1, Groups b, C, and D
Dust-Ignition-Proof for Class II, Division 1, Groups E, F, G
Class III, Division 1, indoor and outdoor (NEMA 4X) hazardous locations
Factory sealed
I5
Intrinsically safe for use in Class I, Division 1, Groups A, B, C, D
Class II, Division 1, Groups E, F, and G
Class III, Division 1 when connected in accordance with Rosemount drawing 02088-1018
Non-incendive for Class I, Division 2, Groups A, B, C, and D
For input parameters see control drawing in detailed spec guide
Canadian Standards Association (CSA)
C6
Explosion-Proof for Class 1, Division 1, Groups B, C, and D
Dust-Ignition-Proof for Class II, Division 1, Groups E, F, G
Class III, indoor and outdoor hazardous locations
CSA enclosure Type 4X
Factory sealed
Suitable for Class I, Division 2, Groups A, B, C, and D
intrinsically Safe for Class I, Division 1, Groups A, B, C, and D
Temperature Code T3C
Intrinsically safe when connected with approved barriers in accordance with Rosemount drawing 02088-1024
For input parameters see detailed spec sheet
European Certifications
I1
ATEX Intrinsically Safe
Certificate No. BAS00ATEX1166X
Special Conditions for Safe Use (x)
When the optional transient protection terminal block is installed, the apparatus is not capable of withstanding a 500V rms test to case. This must be taken into account on any installation in which it is used, for example by assuring that the supply to the apparatus is galvanically isolated
N1
ATEX Type n
Certification No. BAS00ATEX3167X
Special Conditions for Safe Use (x)
When the optional transient protection terminal block is installed, the apparatus is not capable of withstanding a 500V rms test to case. This must be taken into account on any installation in which it is used, for example by assuring that the supply to the apparatus is galvanically isolated
ND
ATEX Combustible Dust
Certificate No. BAS01ATEX1427X
Special Conditions for Safe Use (x)
1 - The user must ensure that the maximum rated voltage and current (36 volts, 24 mA, D.C.) are not exceeded. All connections to other aparatus or associated apparatus shall have control over this voltage and current equivalent to a category ib circuit according to EN50020
2 - Cable entries must be used which maintain the ingress protection of the enclosure to at least IP66
3 - Unused cable entries must be filled w/suitable blanking plugs which maintain ingress protection of the enclosure to at least IP66
4 - Cable entries and blanking plugs must be suitable for ambient range of the apparatus & capable of withstanding a 7J impact test
5 - The 2088/2090 sensor module must be security screwed in place to maintain the ingress protection of the enclosure
ED
ATEX Flame-Proof
Certification No. KEMA97ATEX2378
Japanese Certifications
E4
JIS Flame-Proof
Combinations of Certifications
Stainless steel certification tag is provided when optional approval is specified. Once a device labeled with multiple approval types is installed, it should not be reinstalled using any other approval types. Permanently mark the approval lable to distinguish it from unused approval types.
KB - Combination of E5, I5, and C6
KH - Combination of E5, I5, and I1
K5 - Combination of E5 and I5
K6 - Combination of C6, I1, and ED
|
