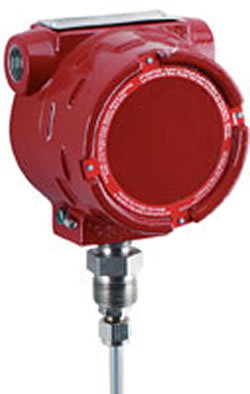

Continuously monitor the level of liquids and slurries, without worry of false signals as a result of material build-up. Loop powered Series CRF delivers a 4-20 mA isolated output signal proportional to the height of material in a tank or holding vessel.

Continuous level transmitter can be field calibrated to fit your specific application. Integral electronics and two-wire design simplify installation. Probes should be mounted vertically and are easily trimmed to shorter lengths where required. When mounting in nonmetallic or horizontal tanks, a separate grounding rod must be used. Consult factory regarding mounting flange, grounding rod assemblies, optional pressure rating, longer lengths and sanitary connection.

Applications
Alcohols, wastewater, oils, polymers, acids, caustics, pulp, slurries, wood chips, water-based products in tanks, bins, or other vessels.

Service
Compatible liquids

Wetted Materials
Connection: 316 SS
Probe: Teflon

Accuracy
±0.1% of full range repeatability
±0.3% of full range linearity

Temperature Limits
Probe: -40 to 250^oF (-40 to 121^oC)
Electronics: -40 to 180^oF (-23 to 82^oC)

Electrical Connections
Screw terminal

Conduit Connection
½" female NPT

Enclosure Rating
Weatherproof

Mounting Orientation
Vertically mounted

Pressure Limit
100 psig (6.89 bar)

Zero and Span Adjustments
Zero: 0 to 500 pF
Span: 25 to 2200 pF

Power Requirements
18 to 30 VDC

Process Connections
¾" male NPT standard
Optional 2, 3, or 4" 150# flange in 316 SS or PVC, 1-½" or 2" sanitary clamp

Output Signal
4 to 20 mA, 2 wire

Loop Resistance
600 Ohms at 24 VDC

Current Consumption
0.6 VA

Weight
6 ft probe model is 7.25 lb (2.39 kg)

Probe Length
Rigid Rod: 12" (304.8 mm) to 144"
Flexible cable with weight: 24" (609.6 mm) to 240" (6.096m)

Options
Flange mount assemblies with reference rod, flexible cable probe, optional connections listed under process connection
